Pelton hydraulic turbines

PELTON

PELTON

Meticulously-designed buckets for top-tier energy production

The Pelton turbine, invented in 1878 by Lester Pelton is known as an “impulse turbine”, since it harnesses Kinetic energy from slowing water down.

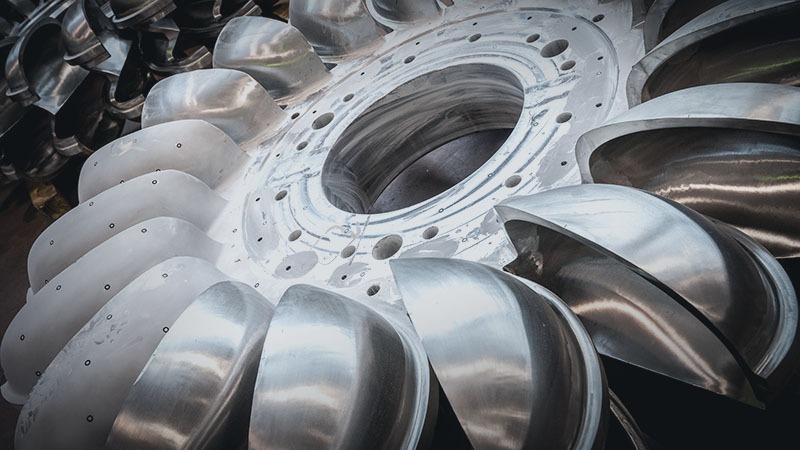

Pelton runners are put in motion by one or more high-pressure water jets that hit the buckets right in their middle part called “splitter”. Thus, the jet is split in 2, distributing pressure uniformly on the whole bucket’s surface, generating a rotary motion.

Pelton turbines are among the most efficient turbines, reaching outputs of up to 95%. They are usually installed in sites with high head and are capable of working both horizontally and vertically.

Top-tier precision is what makes our turbines stand out; our 3D dimensional report proves it further. Thanks to our experience and lean model of production we have reached excellent levels of accuracy: the great majority of wheels we balance do not require any additional material removal, thus saving precious lead time and guaranteeing top-notch wheel quality, as well as a longer expected lifetime.

From purchase of raw material to the delivery of the finished product, Elledi ensures the highest qualitative standards, compliant with all technical requirements.

If needed by the customer, we can supply a template kit for dimensional control.

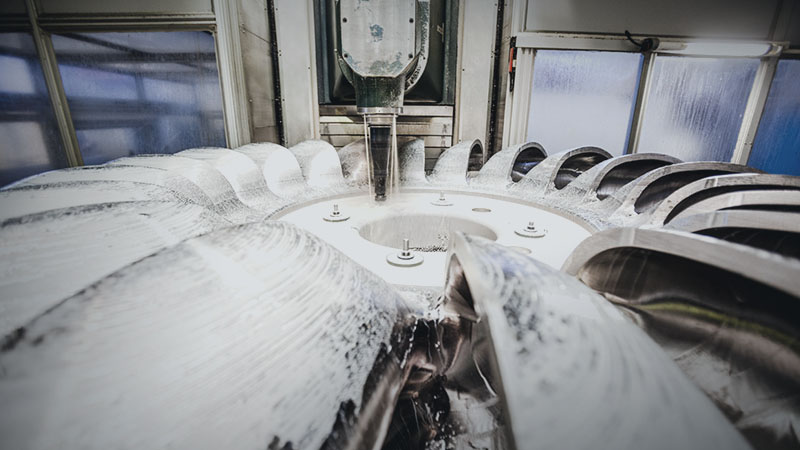

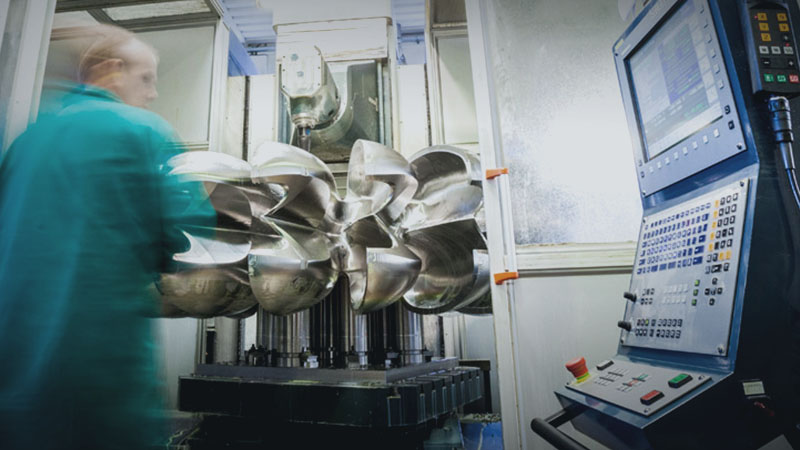

Carefully manufactured for top-tier efficiency, our Peltons are all made from a single steel block. We purchase premium alloys like 1.4313 and 1.4417 from our trusted European partners, ensuring compliance with the strictest acceptability levels.

Apart from the turbines themselves, if needed, we supply components like nozzle flanges and spears/nozzle tips.

Depending on the situation, our Peltons can be surface coated (ex: Tungsten carbide) to further increase the toughness of parts most effected by wear like the middle part of the buckets.

In case of air or rail shipment, we provide special anti-rust packaging to avoid turbine oxidation.

Every Pelton runner that comes out of our factory is of the highest quality grade and comes with a 3D dimensional report certificate, along with a standard dimensional report and an NDT certificate

As of today, we have a portfolio of more than 500 turbines and counting.

from

400

mm

to

2700

mm

max

10

ton

GUARANTEED QUALITY

NON DESTRUCTIVE TESTING

Every turbine manufactured undergoes NDT testing: a series of tests to check a products’ structural integrity, welding defects and surface cracks.

DYNAMIC AND STATIC BALANCING

Turbine’s balance is essential, and it must be tested still and in motion to point out asymmetries and undistributed weight that might stress the bearing, thus increasing the wheel’s expected lifespan.

FINISHES

WELDING

High quality welding  is performed by our  skilled and experienced operators.

THERMAL TREATMENT

Should the project require it, thermal treatment is carried out by our external partners.

POLISHING

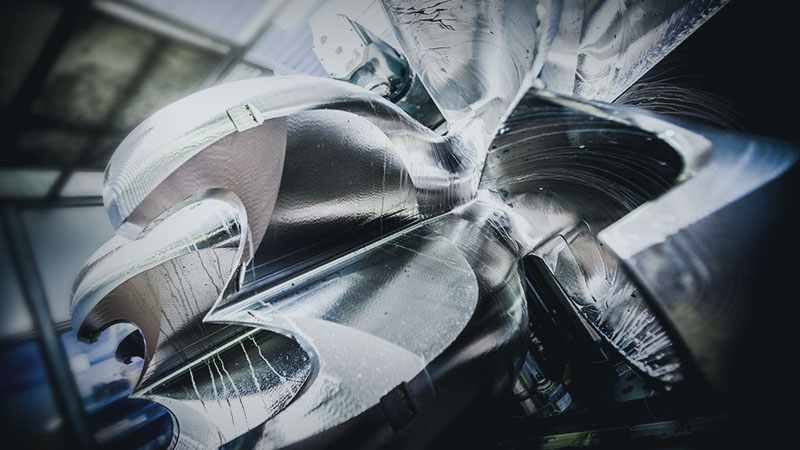

The CNC-worked surfaces are flattened and refined through manual polishing.

Get a free custom quotation
